The mysterious world of "Arcana" offers a brand new way to look at anamorphic lenses. The DZOFILM ARCANA series Hyprid Anamorphic lens perfectly balances wide cinematic images with a small, lightweight design. By mixing great optics with smart engineering, these lenses help you discover new ways to tell your story.
By pairing a cylindrical lens with an oval aperture, the Arcana series overcomes the size and image quality constraints of traditional full-frame anamorphic lenses. Our 700g lightweight design delivers exceptional resolution and ultra-low dispersion, while the rendering maintains the iconic bokeh and lens flare of high-end 2X anamorphic glass. It is the perfect balance of portability and elite image quality.

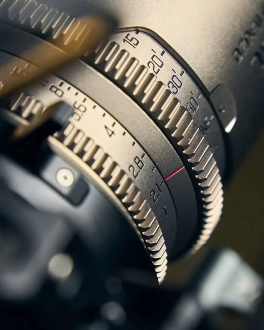

The entire series features a dynamic oval aperture design, ensuring a consistent oval bokeh at every T-stop. When paired with our 1.5x anamorphic front cylindrical elements, it effortlessly produces the 'waterfall' bokeh of 2x anamorphic lenses. The T2.1 aperture delivers a high-end cinematic look across the line, easily isolating the subject to create the immersive, three-dimensional depth typical of larger formats.
1.5X
Squeeze
2X
Signature Optics
T2.1
Large Aperture
Featuring a classic front-cylindrical design, these lenses embrace signature barrel distortion and a constant squeeze ratio, effectively eliminating the 'mumps' effect. This consistency reduces the burden on post-production while allowing the iconic anamorphic horizontal flares to dance with the light, rendering infinite colors from different light source.

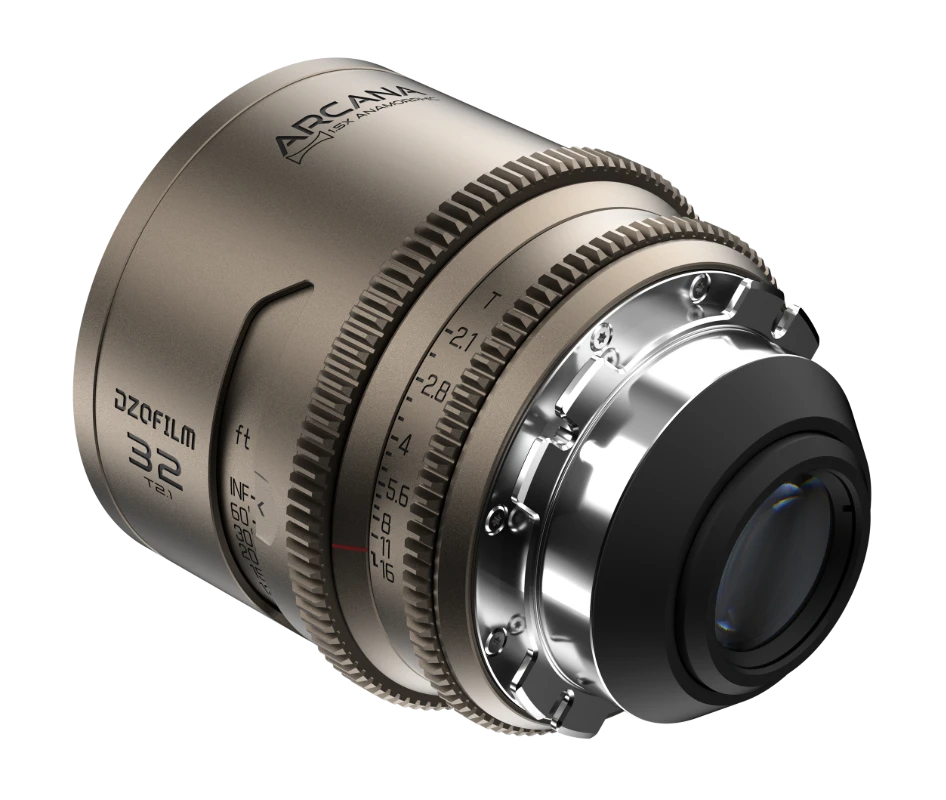

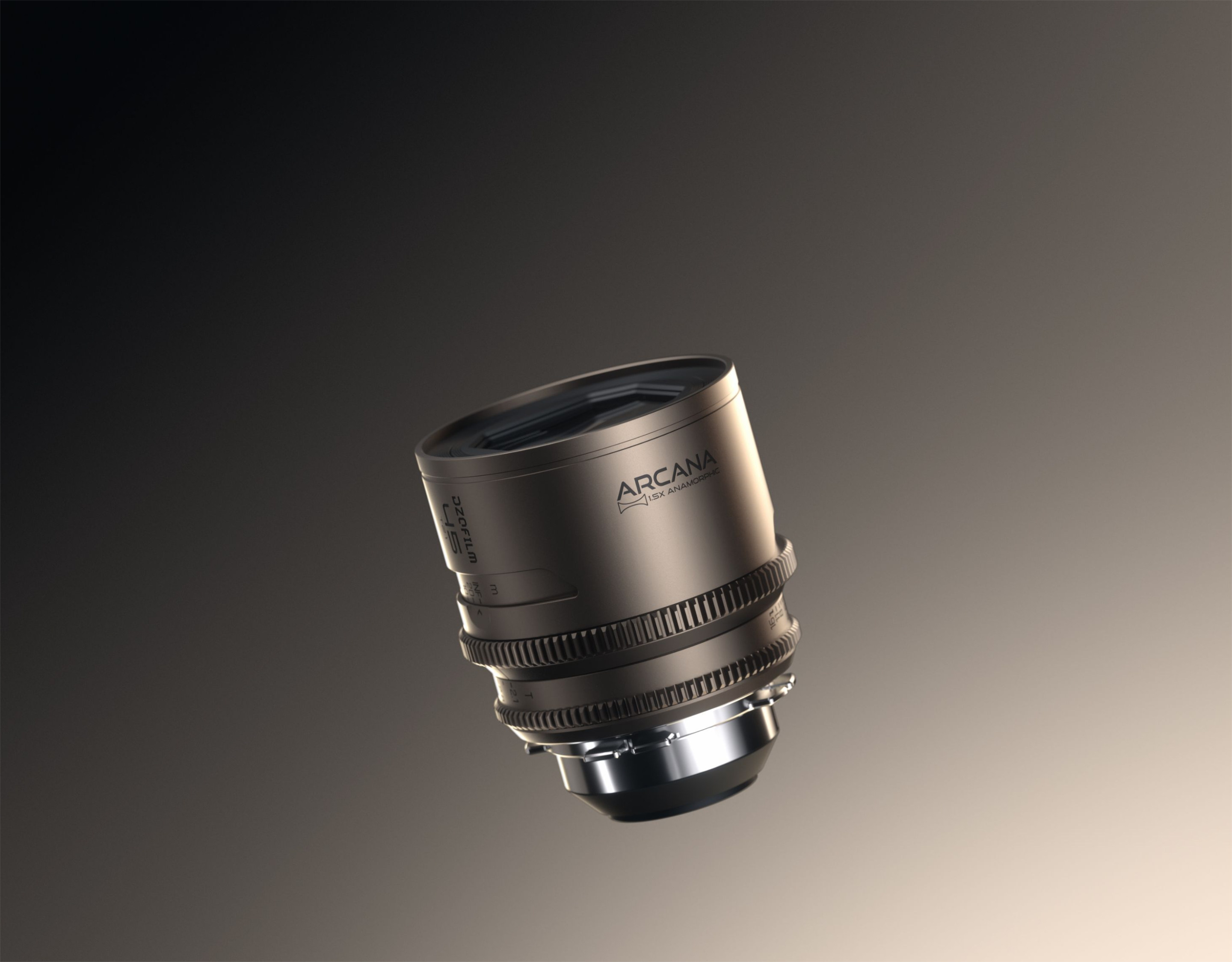

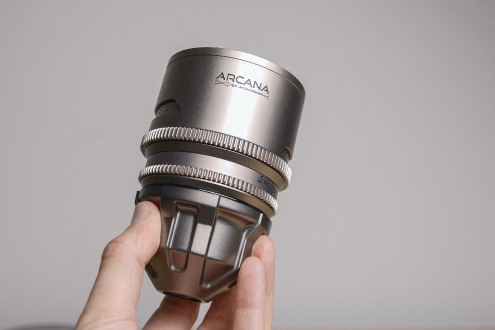

A robust all-aluminum alloy housing finished with an all-new titanium-tone anodization. The entire series features a lightweight design of approximately 700g, more portable than any previous DZOFILM optics.

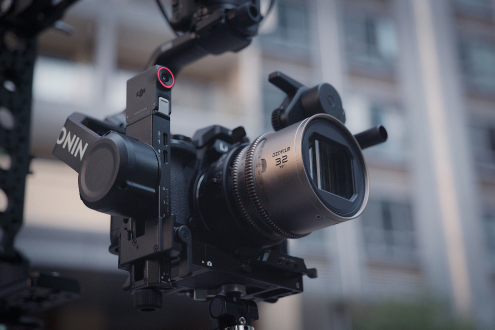

With a class-leading minimum focus distance of 48–78cm, it allows for effortless control during solo handheld, gimbal-mounted setups, or when integrated with the DJI Ronin 4D.

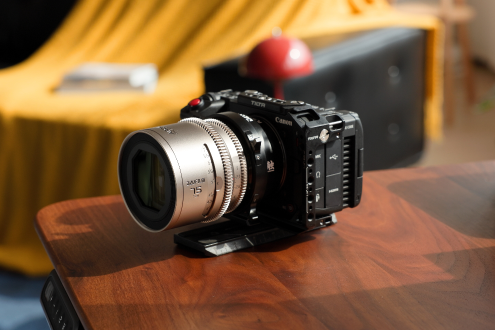

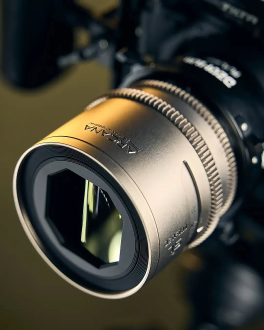

80mm front diameter with 77mm thread; compatible with standard circular filters and matte box mounting. The 21mm rare lens element design ensures compatibility with VND filter adapters and auto-focus adapters. Furthermore, the PL mount features a multi-point positioning design for vertical shooting, allowing for easy adaptation to seamless integration with a wide range of cinema cameras and mirrorless systems.
| Focal Length | 32 mm | 45 mm | 75 mm |
| Colour | Titanium | ||
| Mount | PL | ||
| Aperture | T2.1-16 | ||
| Image Circle | φ43.3mm (36nmx24mn) | ||
| Construction of Optics | 15 Elements in 13 Groups | 15 Elements in 13 Groups | 15 Elements in 11 Groups |
| Angle of view(horizontal,vertical | 97.0(H) X 41.4(V) | 70.0(H) X 30.2(V) | 42.6.0(H) X 18.8(V) |
| Close Focus(from sensor plane) | 0.48m / 1ft7in | 0.53m / 1ft9in | 0.78m / 2ft7in |
| Max.Mag.Ratio | 0.092 | 0.111 | 0.116 |
| Squeeze Factor | 1.5X | ||
| Iris Control | Manual (52.26°) | Manual (51.96°) | Manual (59.53°) |
| Focus Control | Manual 270° | ||
| Front Dia. | φ80mm | ||
| Length(from lens front to flange plane) | 80mm | ||
| Iris Blade | 14 | ||
| Filter Size | M77 | ||
| Gear Pitch | 0.8 Mod | ||
| Material | Aluminum Alloy | ||
| Weight (Product) | 709g | 695g | 709g |
